SNO Security WIFI 3G 4G 5MP PTZ Camera Humanoid Auto Tracking Wireless IP Camera IR 100M SD Storage CAMHI Motion Detection

  • Model:SNO-B8F-4G-20S
  • Brand:SNO
  • Weight:2.0KG

Security WIFI 3G 4G 5MP PTZ Camera Humanoid Auto Tracking Wireless IP Camera IR 100M SD Storage CAMHI Motion Detection

  1. Detailed Information
  2. Download

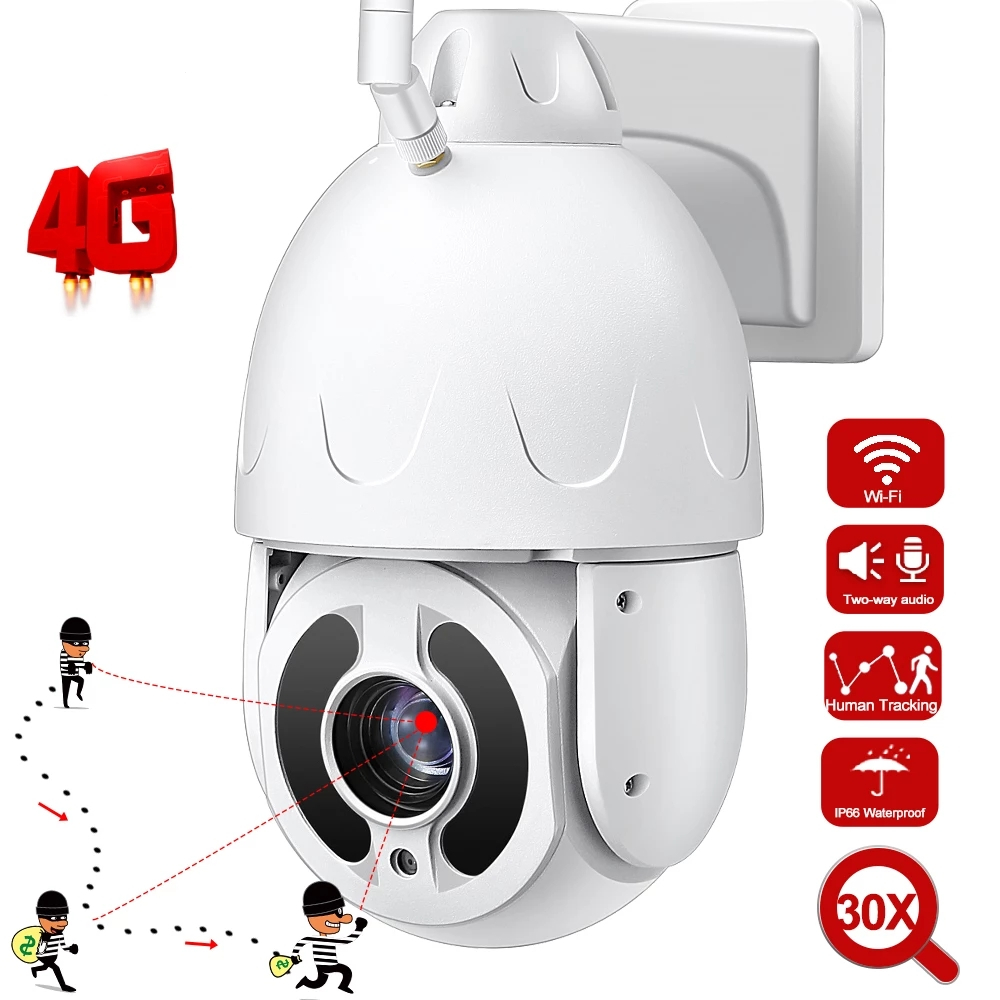

Wireless 5MP 4G/WIFI Auto Tracking PTZ Camera

5.0 megapixel HD 3G/4G or WIFI IP camera, maximum resolution 2560x1920;
HI3516E+1/2.8" SONY335 low lux sensor;
Humaoid auto tracking function;
Support up to 128G TF card storage;
4.7-94mm 20X optical zoom+10X Digital zoom auto focus lens;
Built-in MIC and speaker, support two way audio;
Pan tilt rotation, horizontal:355°&vertical:90°;
Waterproof level IP66;
6pcs array infrared LEDs, night vision distance 100m;
Support P2P, view & anywhere & anytime;
Elegant outline and easy installation;
Provide android & ios APP and professional CMS PC client software;

4G/3G

Version

EU Version(Europe, Africa, Asia)

US Version(North&South America)

4G Standard

FDD-LTE/ TDD-LTE

FDD-LTE

4G Frequency Range

B1(2100MHz), B3(1800MHz), B7(2600MHz), B8(900MHz), B20(800MHz), B38(2600MHz), B40(2300MHz), B41(2500MHz)

B1(2100MHz), B2(1900MHz),

B12(700MHz), B13(700MHz)

3G Standard

WCDMA

WCDMA/TD-SCDMA

3G Frequency Range

B1(2100MHz), B8(900MHz)

B2(1900MHz), B4(1700MHz), B5(850MHz)

SIM Card

Support Nano SIM card(not included) installation, plug&play, easy to set up

AP Mode

Support P2P(Peer-to-Peer) connect mobile App directly by wifi hotspot

Video

Sensor

5.0 Megapixels Hi3516E 1/2.8" SONY IMX335 low lux CMOS

Video Resolution

2560x1920@25fps, 2560x1440@25fps, Sub stream: 800x600/800x448@25fps etc.

Video Compression

H.264 / H.265

Lens Type

20X Optical Zoom+10X Digital Zoom, Auto-focus. Lens: 4.7~94mm, View angle: 61.4°~3.6°

Night Vision

Support full-colorful day/night, night vision distance 100 meters(about 330ft)

Audio

Audio Compression

G.726/G.711. Audio code rate: 8Kbps, 16bit

Audio Input/Output

Built-in Microphone and Speaker, support two-way audio to talk

Alarm

Motion Detection

Can set 4 independent detection region(1-100 sensitivity can be set)

Humanoid Detection

Jointly trigger alarm with humanoid detection Auto-tracking, alarm is more accurate

Alarm Linkage

Alarm send pictures to email box,
Alarm upload pictures and video to FTPserver,
Alarm record pictures and video to micro SD card,
Alarm mobile phone message push,

Alarm trigger sound alarm

Alarm Recording

Support micro SD card and PC client linkage alarm recording

Storage

Micro SD Card

Support up to 128G micro SD card

Recording Mode

Alarm record, timing record, loop record etc.

Video Playback

Support App, IE browser, PC client remote play and download the video

PTZ

Rotation Angle

Horizon Pan: 0°~355°, Vertical Tilt: 0°~90°

Rotation Speed

Horizontal speed: 20°~40°/S; Vertical speed: 10°~20°/S

Preset

Support 8 preset points, supports cruise function

General

Power

DC12V 2A, 5.5 x 2.5mm plug

Operating environment

Environment -20℃~+60℃(-4℉~+140℉), Humidity 10%~90%, non-condensing

Product Type

Durable alloy metal housing, vandal-proof, waterproof level IP66

Product Size

160x100x175mm(L×W×H); Product weight: 1.4kg

Package Size

225x205x120mm(L×W×H); Package weight: 1.9kg

Package Included

IP Camera, Power adapter, Antenna, Network cable, Mounting screws, Manual

Certification

CE, FCC, RoHS

Warranty

One year warranty of free spare parts, lifetime tech support.



20X PTZ Optical Zoom+10X Digital Zoom, Pan Tilt Rotation

security wi-fi camera up to 20X optical zoom, Rotation Range: Horizontal 0~355 Degree Unlimited Rotation; Vertical 0~90 Degree. Take care of your home in all directions Note: 4.7-94mm Lens camera not support optical zoom.

AI Human Auto Tracking

Human Detection algorithm reduces false motion detection alerts by filtering for human features. Smart Tracking allows the camera to track objects in motion. When enabled the camera will begin to automatically record and follow the object in motion.



AI Humanoid detection

Humanoid detection intelligent system: recognizes people and accurately tracks. Does not miss tracking and other objects. Effectively filter out invalid alarms to make the alarms more accurate.



Day And Night Color Vision

The camera has night vision function, clear image at night, with 8Pcs infrared radiation light for 24 hours vigilance, the camera night vision range in the dark up to 60M, in the prevention of security threats have a very good guarantee.



Get Real-Time Alarm linkage

The mobile humanoid object is automatically detected and the alarm is triggered when a danger occurs. Protect your family and business from thieves, intruders and intrusion. This camera will issue an alert in real time when the invasion is invaded. (You can set this feature to take effect specified time period and area)


Two Way Audio Talk Back

Built-In Microphone, Support Two Way Audio Talk Back ( With Speaker )

Support Two Way Audio Talk Back

Built-in microphone and speaker / Customized new speakers with loud volume .

You could talk to anyone nears the camera ( Warn someone to leave your house )


Pan Tilt Rotation

Horizontal: 355 Degree & Vertical: 90 Degree




IP66 Outdoor Waterproof Metal Housing


Our outdoor security camera with waterproof body and power adapter, work temperature minus -30 degrees Celsius to 50 degrees Celsius, work well on the heavy rains or snows days.


Support P2P

Provide Android & IOS APP (CamHipro) And Professional CMS PC Client Software


Support TF / Micro SD Card

Camera starts recording when power is turned on,support up to 128GB SD card(not included), when the SD card is full, it will automatically cover the old video.



Packing list




Usage Scenarios

Can Be Used In A Variety Of Environments, Whether It Is Rain Or Dust Can Be Effectively Isolated
