SNO WiFi Peephole Doorbell SNO-DB006P
- Model:SNO-DB006P
- Brand:SNO
- Weight:1.0kg

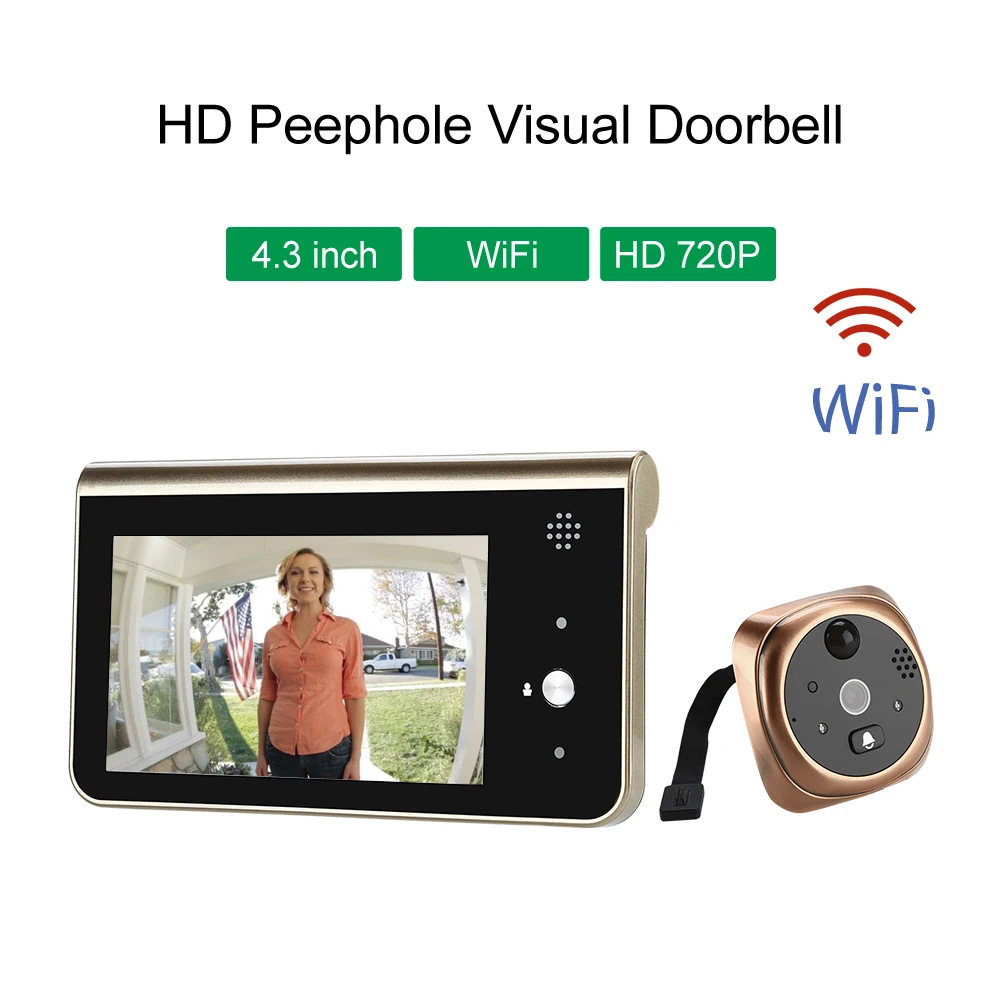

SNO WiFi Peephole Doorbell
WiFi connection & HD peephole, remote intercom, suitable for IOS and android smartphone .

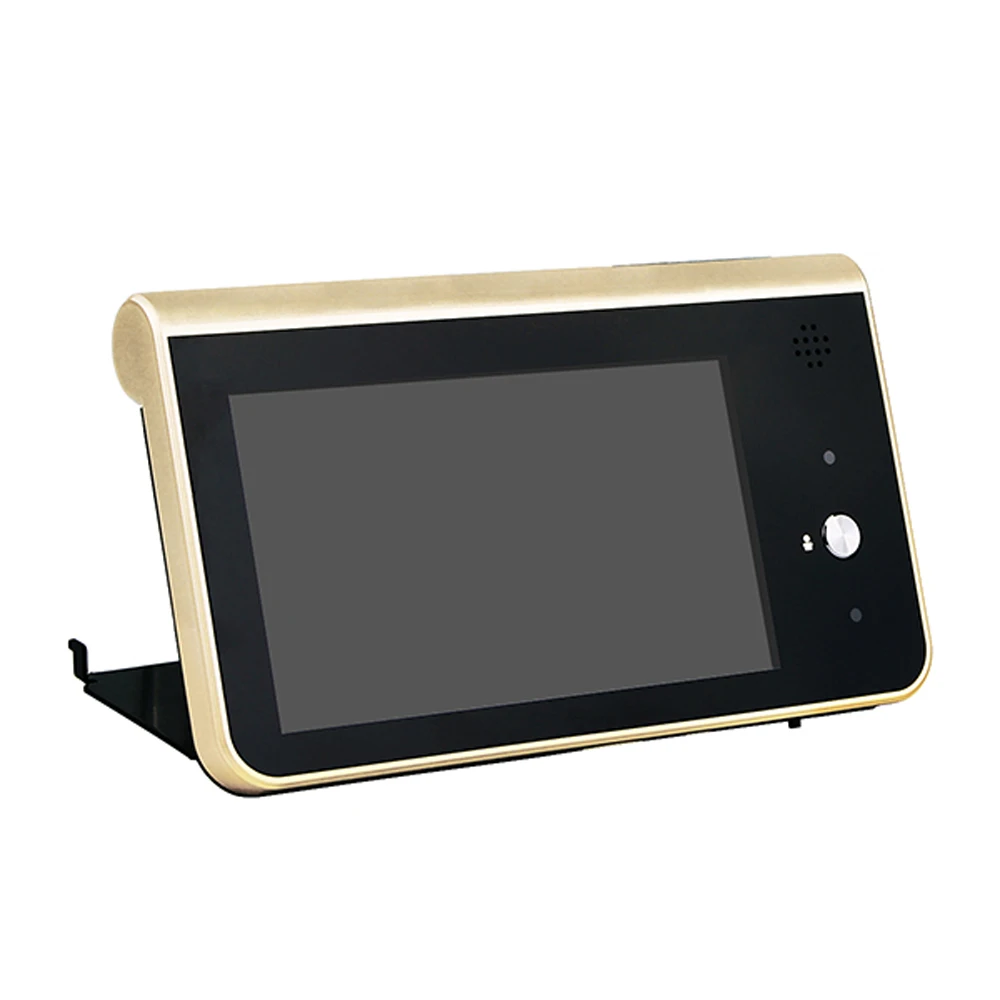

4.3 inch high-definition LCD screen
HD 720P image ultra-low power consumption design
Quick access via app (automatically wakes up within 3 seconds)
Respond to users access demands within 1 second
2pcs IR Leds, support 2-way audio with noise cancellation
APP support iOS & Android
Automatic take a picture & video recording when visitor press doorbell
PIR motion detect alarm
Cloud storage function
Support max. 32GB TF card to save video recording (not included)

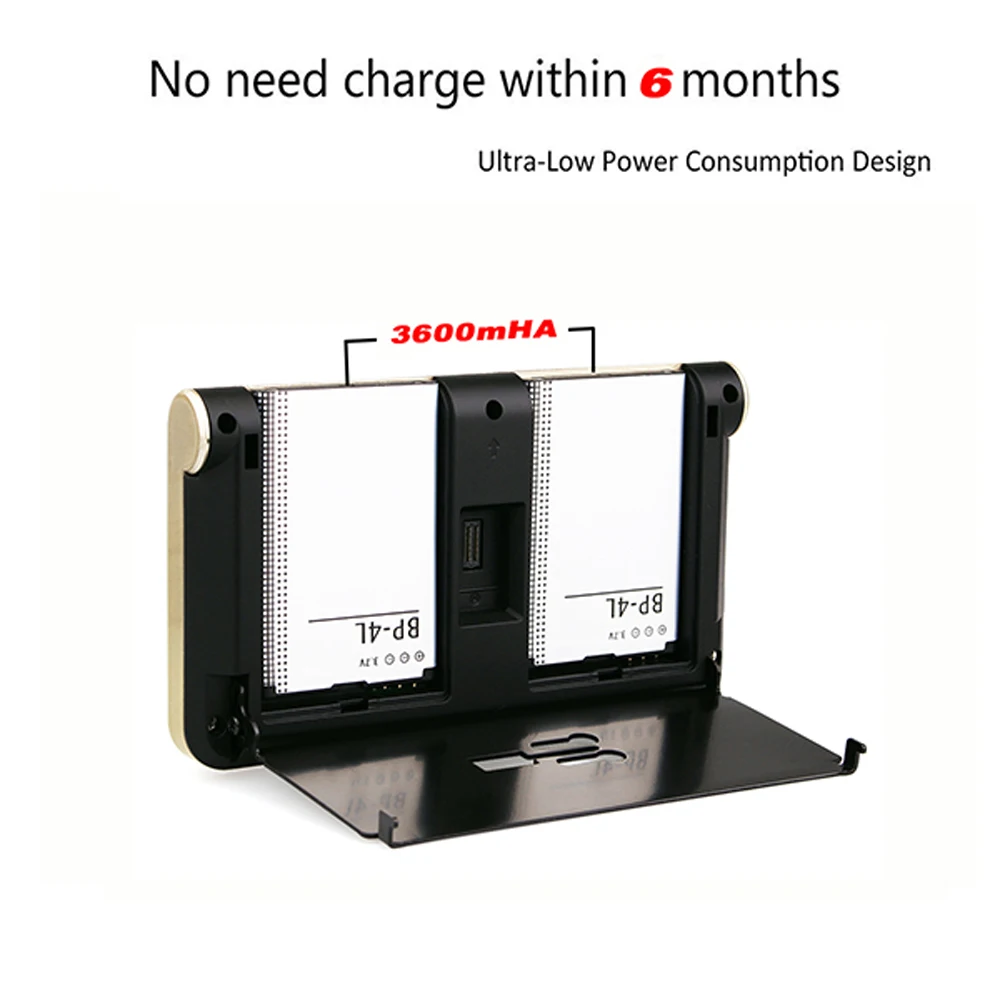

Built-in 3600mAh lithium battery and easy charge by USB
No need charge within 6 months
The newest design case-weatherproof

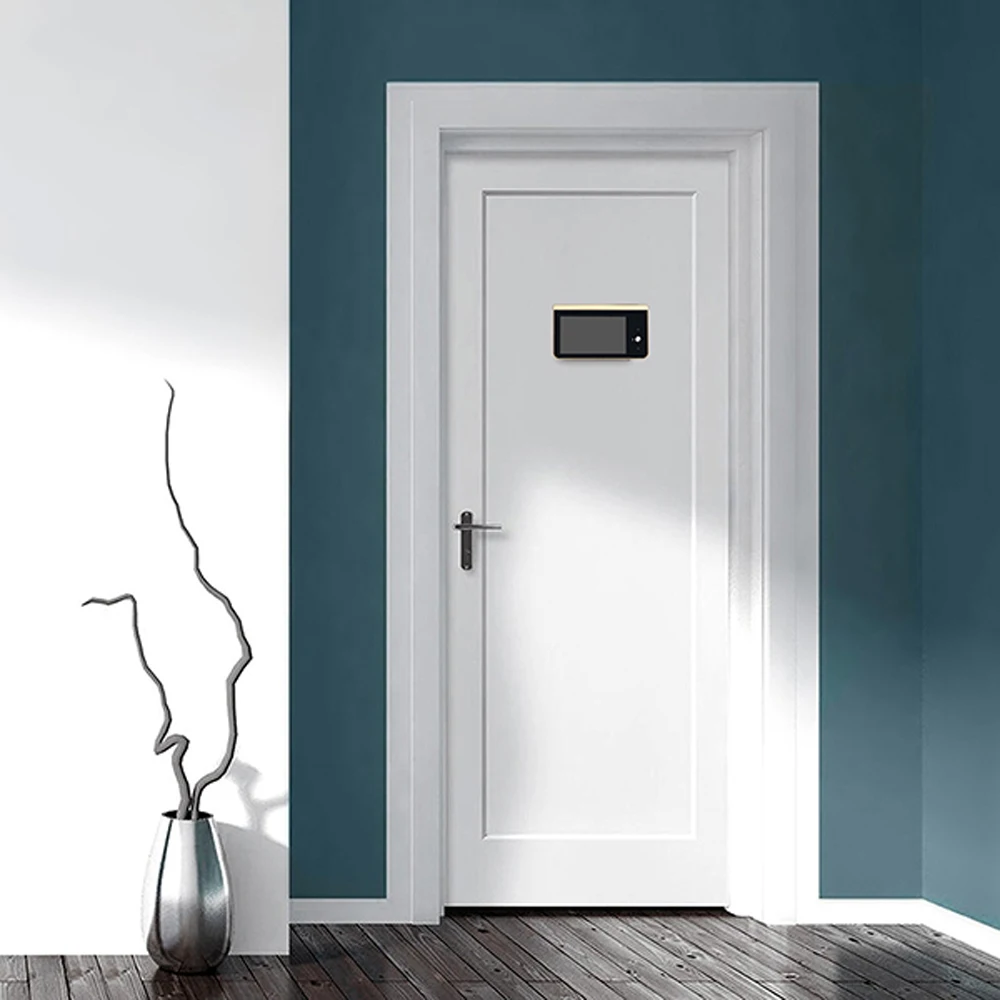

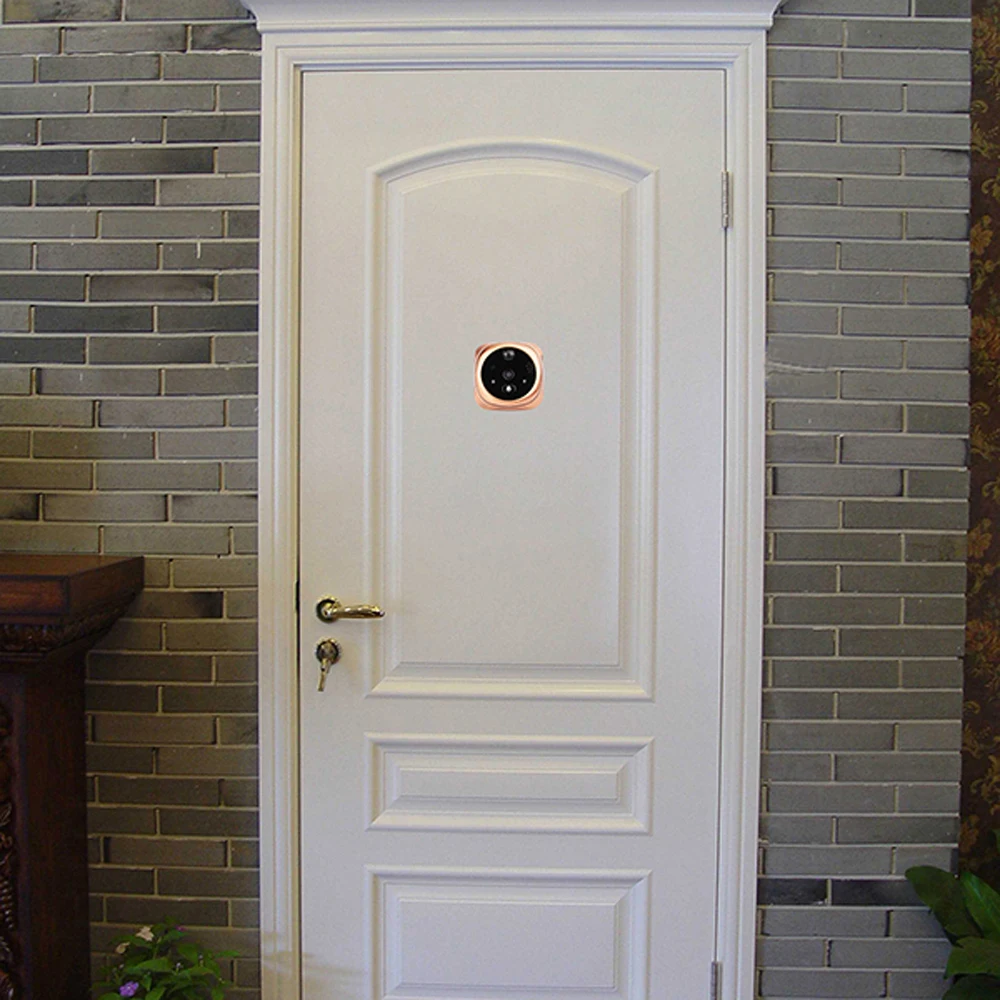

Easy installation (no need any cable), just wifi connection
This doorbell suit for the door within 10cm thiickness.

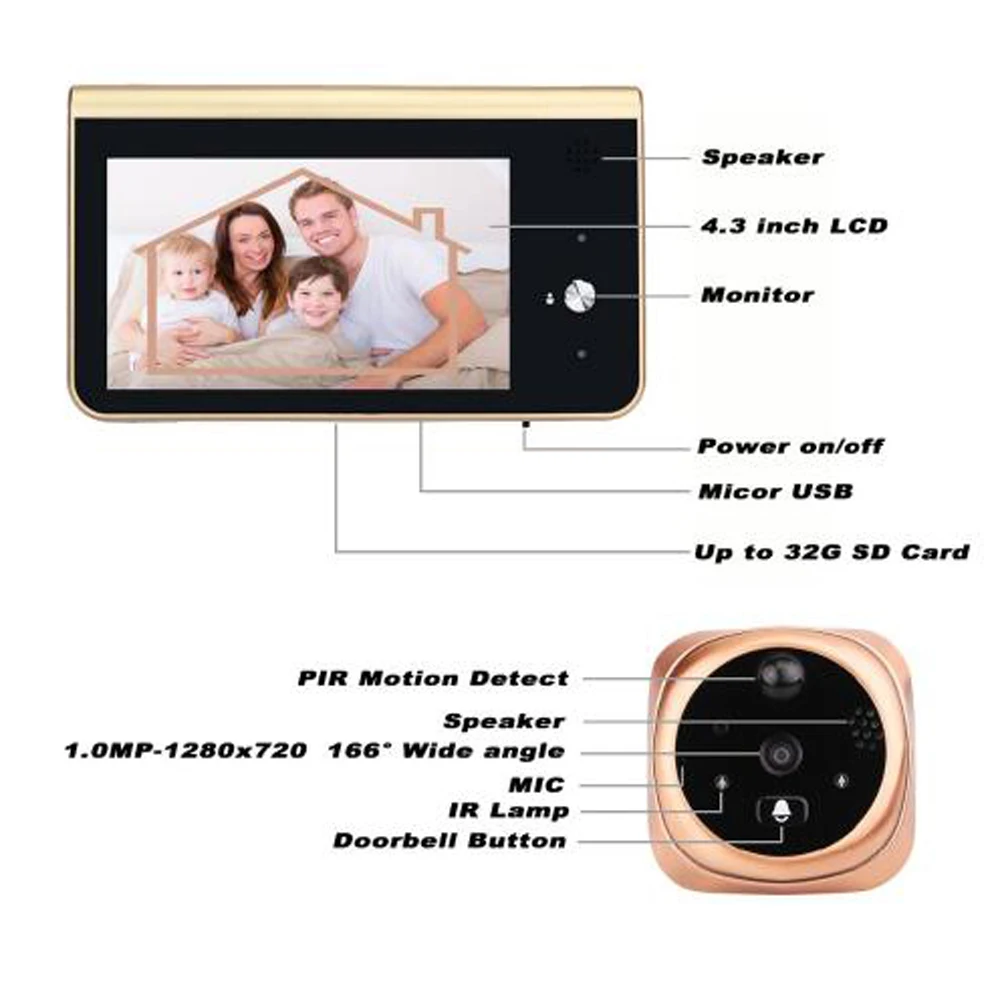

Video Peephole Specifications:
Model: SNO-DB006P
LCD Display Size: 4.3 inch
Image Sensor:
Solution: OV9712 CMOS Sensor + Hi3518E SoC
Display Resolution: 1.0MP-1280x720P
Focal Length: 1.7mm
Angle of View: 166° wide angle
Audio:
Input/Output: Built-in microphone&speaker
Type: 2-way audio with noice cancellation
Video:
Video Compression: H.264
Resolution: 1280*720@25fps
Stream: Double stream
Night Vision: 2pcs IR-LEDs
Alarm:
PIR Motion Detect: Yes
Network:
Protocol: TCP/IP,UDP.DHCP,P2P,RTSP,FTP
Wireless Standard: 2.4Ghz WiFi IEEE 802.11b/g/n
App:
Support: Android,IOS (app: wecsee)
Storage:
Mobile Phone Memory: Yes
SD TF Card: Max. 32GB (not included)
Cloud Function: Yes
Power:
Power Supply: 3600mAh battery (2pcs 1800mAh)( including )
Charging Port: Micro USB
Consumption:
Working Mode: 380mA (IR on)
Standby Mode: 200uA
Physical:
LCD Dimension: 140*82*20 mm
Camera Machine: 64.5*64.5*16 mm (copper)
Weatherproof: Yes
User Accounts: Total 4 Users
Working Temperature: -20℃ to 55℃
Relative Humidity: 85% non-condensing

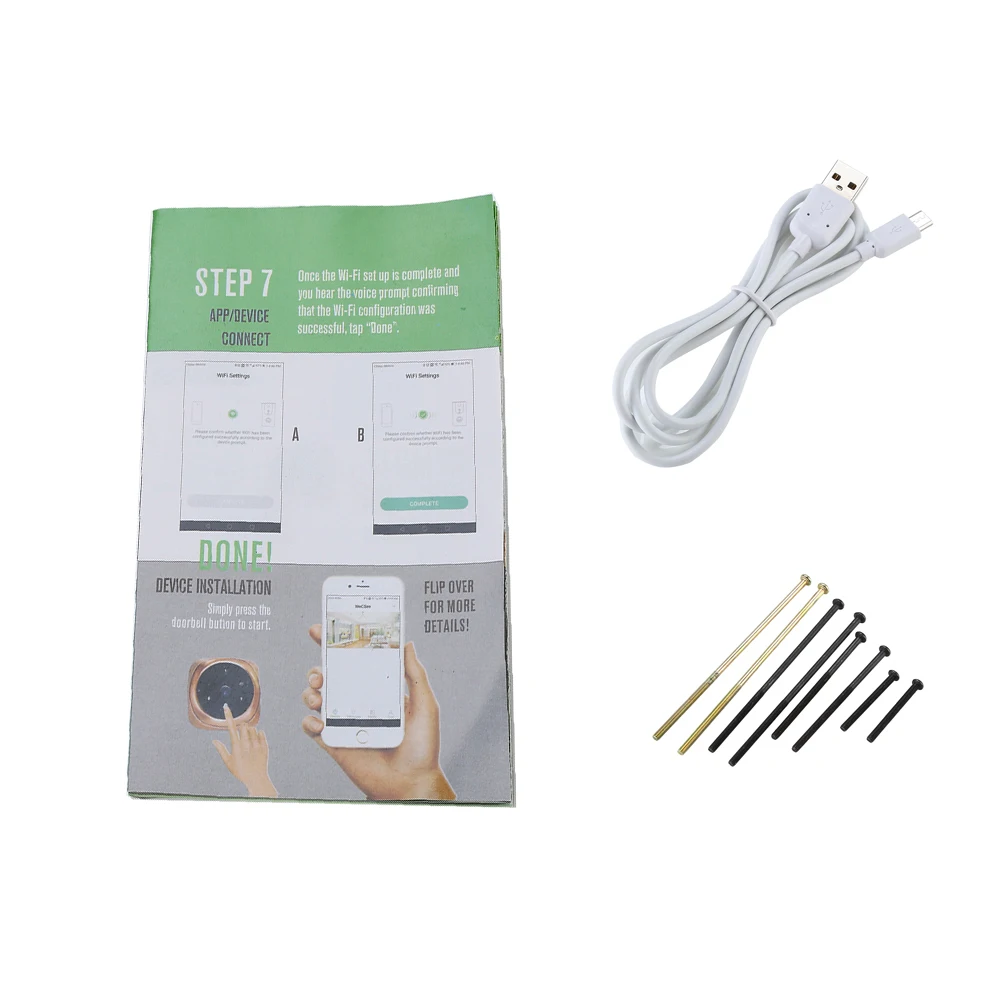

Attachment: SNO Peephole Video Doorbell User Manual.pdf
