SNO 1080P PTZ 4G 3G SIM Card Outdoor Speed Dome 20X Zoom Camera SNO-B8C-4G-20

  • Model:SNO-B8C-4G-20
  • Brand:SNO
  • Weight:2.3kg

SNO 1080P PTZ 4G 3G SIM Card Outdoor Speed Dome 20X Zoom Camera

  1. Detailed Information
  2. Download

Key Specifications/Special Features:

What are the Main Features?

* ALL 3G 4G available ,FDD-LTE, TDD-LTE, WCDMA/HSPA+, TD-SCDMA, GSM/GPRS/EDGE
* Professional senior Industrial level Main Board
* 4.7-94MM 2 Mega pixels Varifocal Lens ,20X Optical zoom

* Standby recording 2-3 days even cloudy or rainy
* H.265/H.264 Compression,dual stream(1.3M), three stream(2.0MP)

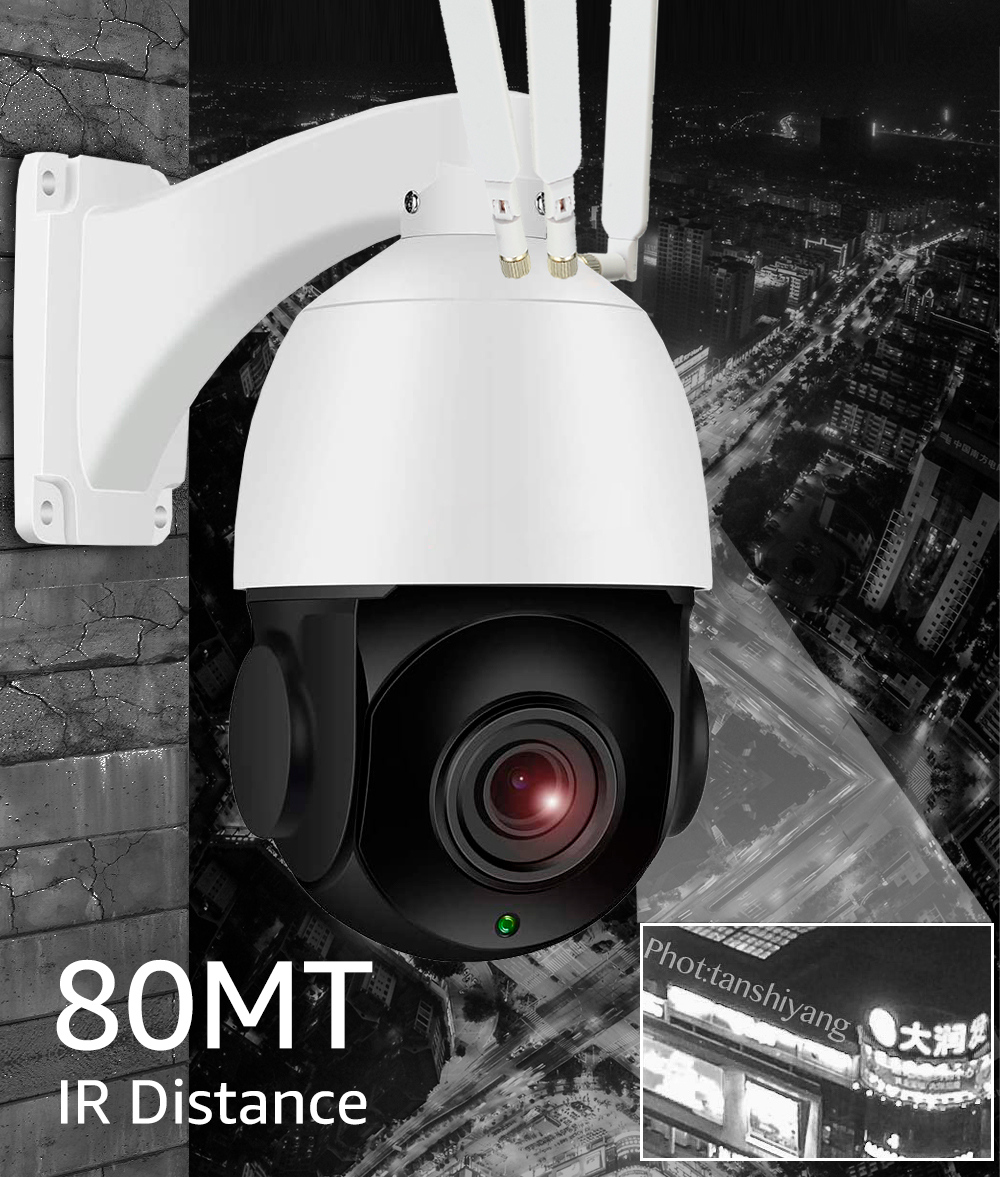

* 6pcs OSRAM IR Array LEDs,IR Distance 80M

* Built-in Micro SD card slot, Max 128G
* Support mobile phone remote view, compatible with many smartphone operating platform
* Support alarm pictures to send E-mail,upload to FTP server
* Support timer captured picture uploaded to Micro SD card and FTP server
* Built-in webserver to facilitate the user to use the standard IE browser to achieve the front end of the real-time browsing and setting management
*Support multi-screen viewing, playback, recording and alarming on PC.

What are the Applications?

The Solar Power WiFi IP Camera Kit are widely used in Construction Site, Farm, Park, Highway, Work Shop, Oil Field


Model
SNO-B8C-4G-20
CPU
Hi3518EV200+sony307
Sensor
1/2.8" CMOS(Sony IMX307)
Resolution
1920*1080
Pixel
2.0MP
APP
Camhi
Lens
4.7~94mm Motorized zoom lens
Zoom
20X Optical
Minimum illumination
0.01Lux
Day/night mode
Support IR-cut
IR distance
150M
Storage function
Support 128G TF card max(TF card optional)
Motion detection
4 separate test areas can be set (Sensitivity can be set)
Alarm linkage
Send pictures by Email; pictures and videos uploaded to the FTP server
Manual speed
0.5-40°/S
Preset speed
40°/S
Video processing
Support H.264 Main Profile, H.264 Baseline
Network interface
1 RJ45 Ethernet interfaces ,10/100M self-adaption;
Suppert:CP/IP,HTTP,TCP,ICMP,UDP,ARP, IGMP,SMTP,FTP,DHCP,DNS,DDNS,NTP,UPNP,RTSP
4G
Network Type:FDD-LTE/TD-LTE/WCDMA/HSPA+/TD-SWCDMA/GSM/GPRS/EDGE
Network band: LTE B1/B3/B7/B8/B38/B39/B40/B41
WCDMA 2100MHZ/900MHZ
TD-SCDMA B34/B39
GSM/GPRS/EDGE 900/1800MHZ
Preset
50
APP
Camhi
A-B Scan
1
Cruise
4 groups
Preset cruise groups
10 preset/ groups
Waterproof
IP66
Lightning protection
4000V
Working temperature
-20℃~+60℃
GW
2.0KG





3G / 4G SIM Card Slot

If your installation place not have wifi or wired internet, this camera will solve your problem, Power on the camera, Insert 3G/4G SIM card, Scan the QR code, connection the camera on mobile app, easy and simple to use.


20X Optical Zoom Auto Focus & 10X Digial Zoom

4.7-94mm Varifocal 9-layer 5 Megapixel Motorized Auto Focus HD Lens, Every details see much more clear than 1080P.

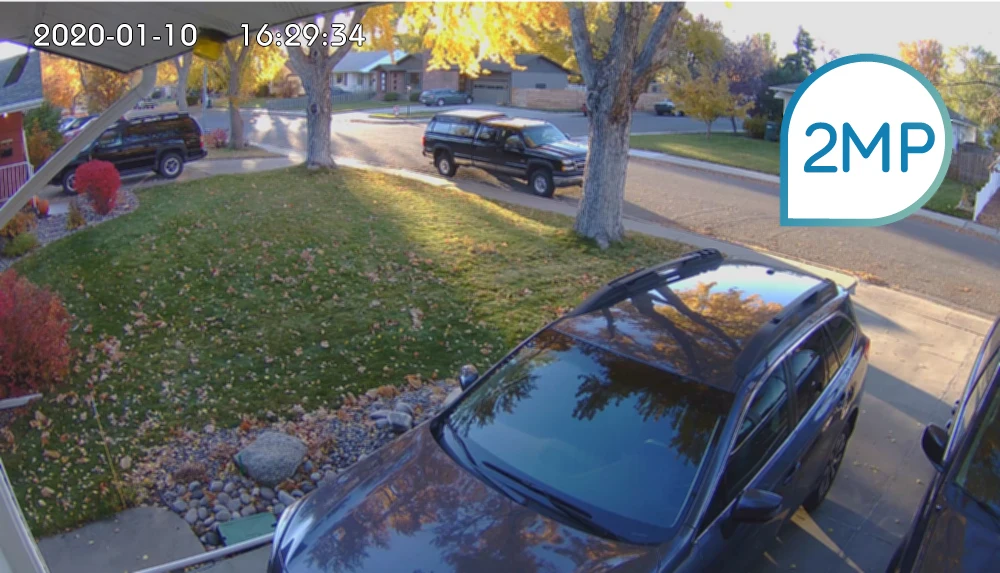

2MegaPixel Sony Ultra-HD Day/Night Monitor

2 Megapixel SonyChip, see every details in beautiful color and super clearly with this Ultra-HD camera. All captured by this camera will be presented to you via fluent and stunning videos.

Sony Starvis Chip - Enhanced Night Vision

2 Megapixel built in Sony IMX307 Chip, Upgrade night vision and Low light imaging, With F2.1 aperture Lens, and 3D NR (Noise Reduction), DWDR (Digital Wide Dynamic Range) technology, See clear every details even in the backlight and night.


See Wider, See farther, See more clearly

If you are looking for a camera that see distance of several hundred meters, that's it !

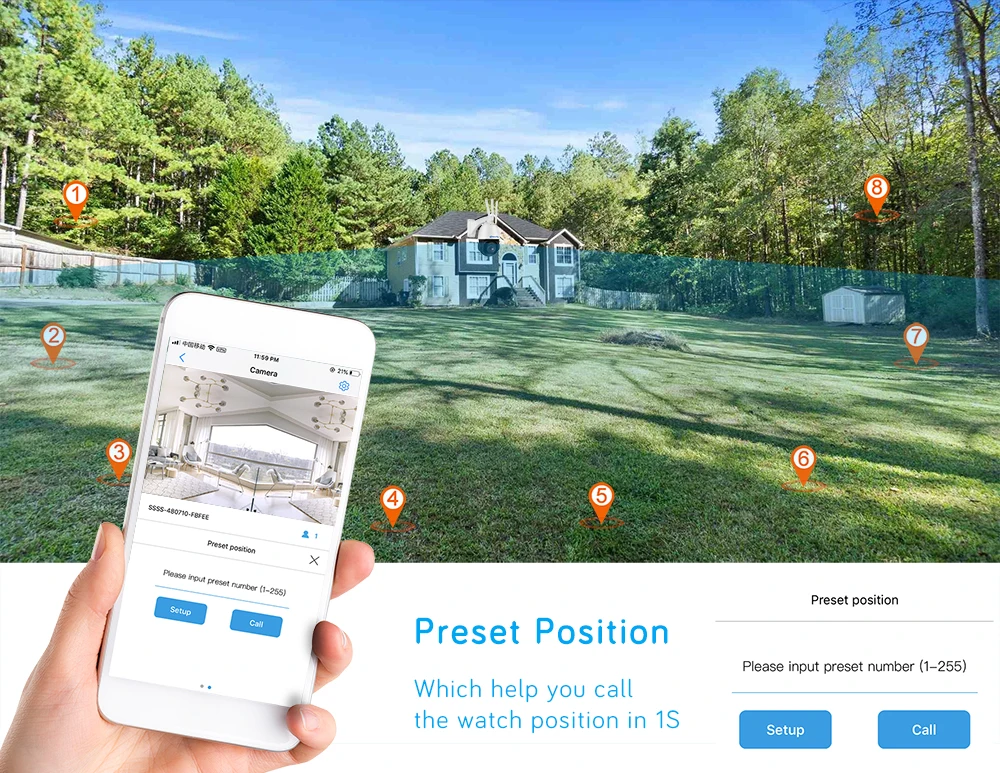

Support 255 preset position

Preset your watch point, start patrol, the camera become your patrolman.

Support Real-time Alerts to Avoid Property Loss

Is there anyone at your back door? Is my home secure while I'm away from home? SNO home security cameras would solve these problems! With the motion detection features, real-time message alerts will send to your phone. Once you active the motion detection function, the security camera would snapshot and record video automatically.


Clearly Two Way Audio - Talk and Listen Anywhere

The built-in ultra-responsive microphone allows you to have smooth stable conversations through your mobile App, wherever you are. Intercom mode lets you activate the microphone and speaker, so you can send commands to your pet, or scare off unwanted guests.


Full Metal Aluminum alloy body

High Quality aluminum alloy casing, vandalproof, better heat dissipation for work in high temperature, longer lifetime than plastic.


SD Card and Onvif recorder storage

SNO CamHi security camera supports SD card storage up to 128GB. also it support onvif recorder, with smart H.265 technology,it could save over 5 times more memory space than other cameras.


H.265 Compression and Dual Stream Recording

SNO CamHi PTZ Camera adopting the advanced H.265 video compression, the bandwidth efficiency and transmission speed are greatly increased. H.265 help you save 50% storage space than others. While dual-stream separates local recording from remote viewing to eliminate interference between them.

IP66 Waterproof Both Outdoor/Indoor Use

SNO PTZ Camera is weatherproof, Sun protection, Cold resistance, Dustproof and lightning production


Plug & Play - Quick and easy setup

ZYsecurity IP camera comes with a QR code that can be scanned with a mobile device using our free app (iOs and Android). This wireless camera can be quickly and easily set up.

Check What You Missed

You can playback videos of your lovely kids、pets and family to find many interesting moments which is memorable.Just login the app to find the videos from the Cloud/ SD card to see what happened.This camera could help you 7/24/365 loop record many wonderful moments so that you could collect them.


Share With Your Loved Ones

ZYsecurity IP camera supports multiple users to view image simultaneously with APP on iPhone/android phone, Pad, PC and tablets .You could share your camera with family or your friends. After sharing, they will be able to access the same camera simultaneously,so that you could enjoy the great moments together.

AP Hotspot and multiple connection way

Built -in 2pcs 4G antenna +1pc Wifi antenna,  support AP hotspot connection too, you don't have to climbing high to get the card or connection cable anymore.

Manage your camera from CamHipro App:

First time connection, please press the RESET button in the equipment base for 10s to restart camera.
