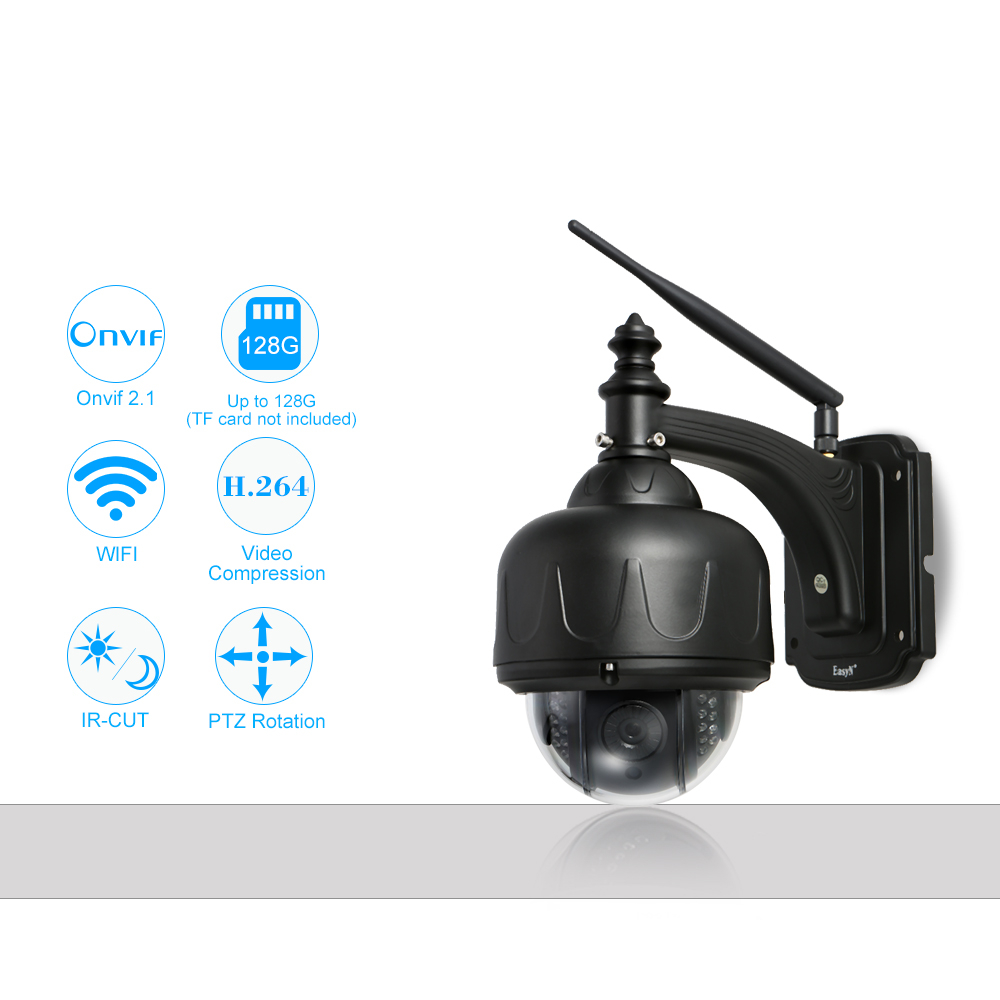

2.0 megapixel HD IP camera, maximum resolution 1920*1080;
Support WIFI, support AP mode;
Support up to 128G TF card storage;
2.7-13.5mm 5X optical zoom auto focus lens;
Support two way audio(built-in MIC and speakers);
Pan tilt rotation, horizontal:355°&vertical:90°;
Waterproof level IP66;
6pcs array infrared LEDs, night vision distance 40m;
Support P2P, view & anywhere & anytime;
Elegant outline and easy installation;
Provide android & ios APP and professional CMS PC client software;
1. Specifications
Model | SNO-PTZ40W-20 |
Video | Sensor | 2.0 megapixel 1/2.9" SONY323 low lux CMOS |
Video resolution | Main stream: 1920x1080@25fps, 1280x720@25fps Sub stream: 640x352@25fps, 320x176@25fps |
Video compression | H.264 |
Lens | 2.7-13.5mm 5X optical zoom auto focus lens |
View angle | 96°~26.2° |
Night vision | 6pcs array infrared LEDs, night vision distance 40m |
Audio | Audio compression | G.726/G.711 |
Audio code rate | 8Kbps, 16bit |
Audio input/output | Built-in MIC and speakers, support two way audio |
Alarm | Motion detecting alarm | Can set 4 independent detection region (1-100 sensitivity can be set) |
Alarm linkage | Alarm send pictures to the mailbox, Alarm upload pictures and videos to the FTP server, Alarm record pictures and videos to Micro SD card, Alarm mobile phone message push |
Alarm recording | Support Micro SD card and PC client linkage alarm recording |
Network | Wireless | IEEE 802.11 b/g/n |
Ethernet | RJ45 Ethernet |
Onvif protocol | Support ONVIF 2.4(backward compatible) |
Storage | Micro SD card | Support up to 128G micro SD card |
Recording mode | Alarm record, timing record, |
Video playback | Support APP, IE browser, remote client play and download the video |
PTZ | Rotation angle | Horizon: 0°~355°, Vertical: 0°~90° |
Horizontal speed | 10°~ 30°/S |
Vertical speed | 8°~ 25°/S |
Preset | Support 8 preset points |
General specification | Power | DC12V 1A |
Operating environment | Environment -20℃~+60℃(-4℉~+140℉), Humidity 10%~90%, non-condensing |
Waterproof level | IP66 |
Product size | 230mm×125mm×215mm(L×W×H) |
Product weight | 1.0kg |
Package size | 260mmx230mmx170mm(L×W×H) |
Package weight | 1.5kg |
Reset button | Support |
