Home > Products > Solar Power 4G IP Camera > 5.0MP 4G IPC > SNO Outdoor 5MP 4G Wifi 5x Zoom Speed Dome PTZ Camera AI Human Detect Auto Tracking Metal Camera H.265 P2P Wireless Camera CCTV

SNO Outdoor 5MP 4G Wifi 5x Zoom Speed Dome PTZ Camera AI Human Detect Auto Tracking Metal Camera H.265 P2P Wireless Camera CCTV

  • Model:SNO-NC60-4G5X-50
  • Brand:SNO
  • Weight:1.0KG

Outdoor 5MP 4G Wifi 5x Zoom Speed Dome PTZ Camera AI Human Detect Auto Tracking Metal Camera H.265 P2P Wireless Camera CCTV

  1. Detailed Information
  2. Download

Outdoor IP Camera 5MP 4g Sim card /WIFI AI Auto Tracking 5X Zoom Wireless PTZ Speed Dome CCTV Camera Two Way Audio IR 60m CamhiPro


5MP 5X Zoom 5MP Wireless PTZ Speed Dome IP Camera WIFI Outdoor Waterproof 60M IR Night vision


HD 5MP 3 Inch Metal Mini PTZ Dome WIFI IP Camera


5X Optical Zoom Auto Focus Lens


2.7-13.5mm 5X Optical Zoom Auto Focus Lens



Usage Scenarios

Can Be Used A Variety Of Environments

40-60m Night Vision

Smart Night Vision


High Definition Night Vision Effect


LEDs: 10pcs Array LEDs + White Supplement Light

Alarm Linkage


Alarm Send Pictures To The Specified Mailbox, Alarm Upload Pictures And Videos To The FTP Server,

Alarm Write Pictures And Videos To The Micro SD Card, Alarm Message Push

AI Human Auto Tracking


Human Detection algorithm reduces false motion detection alerts by filtering for human features. Smart Tracking allows the camera to track objects in motion. When enabled the camera will begin to automatically record and follow the object in motion.


Waterproof IP66

Metal Housing Material, Outdoor Use

Two Way Audio


Built-In Microphone, Support Two Way Audio

Talk Back (With Speaker)

Mobile App Support

Provide Android & IOS APP (CamHi) / (CamhiPor) And Professional CMS PC Client SoftwarePan Tilt Rotation

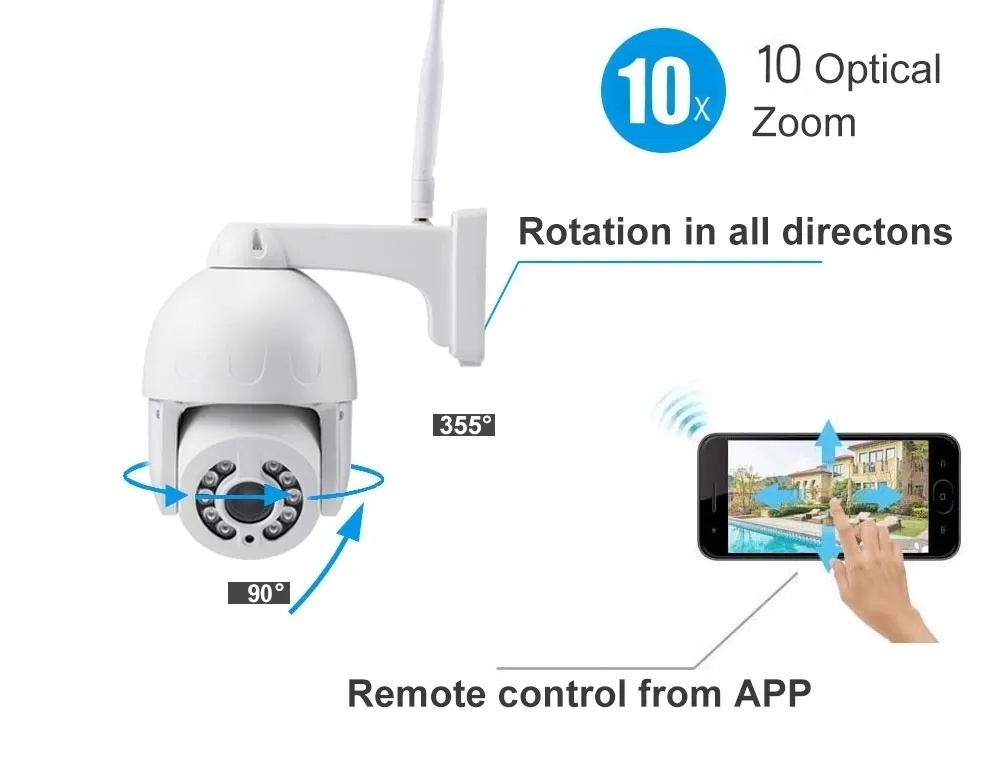

Horizon: 0 To 355 Degree ; Vertical: 0 To 93 Degree

TF/Micro SD Card


Don't Included TF Card

Features :


3inch Super Mini Size Case PTZ Dome WIFI IP Camera


5MP(2560x1920) Sensor


Support 5MP Super High Quality Resolution


Support TF/Micro SD Card, up to 128G(Don't included TF Card)


2.7-13.5mm 5x Optical Zoom Auto Focus Lens


Pan Tilt Rotation, Horizontal:355° & Vertical:90°Ø


10pcs Array Infrared LEDsor White Supplement Light. 60m Night Vision


Support P2P, View & Anywhere & Anytime


Provide Android & IOS APP (CamHi) and professional CMS PC client software


Wireless Protocols : 802.11b/g/n, 150Mbps, 10-50m


Metal Housing Material,Outdoor Use,Waterproof IP66


Built-in Microphone,Loud Speaker,Support Two Way Audio Talk Back


Microphone Effective Range 15 Meters, Loudspeaker Effective Range 60 Meters

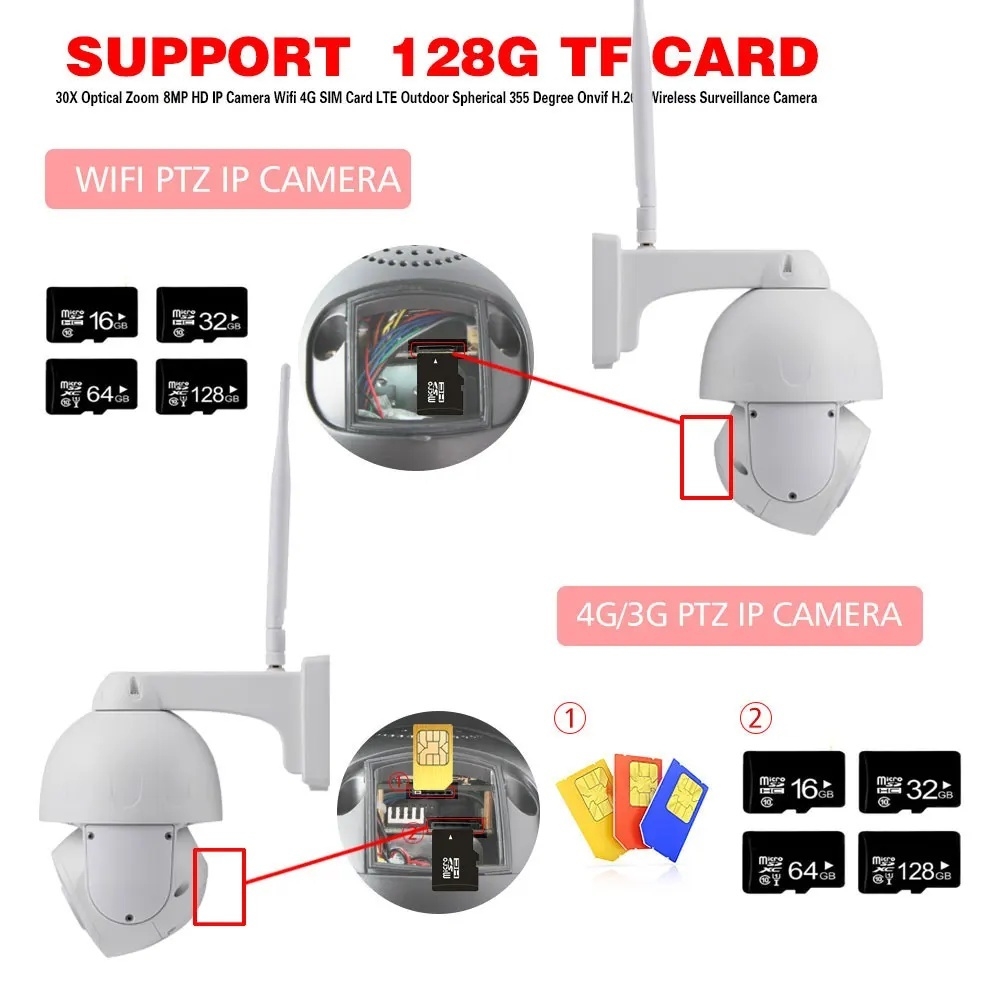

The SD Card Slot Is Designed On The Camera's Back Cover,Very Easy to Install the TF/Micro SD Card .

Specifications:

Model



Operating system

Embedded Linux OS

Image Sensor

HI3516EV300+IMX335

Megapixel

5MP(2560x1920)

Lens interface type

M12

Lens

2.7-13.5mm 5x Optical Zoom Auto Focus Lens

View angle

89.9°-26.2°

Min.illumination

0.05 Lux  / 0 Lux(IR on)

Day&Night mode

Auto IR-CUT

Night vision distance

10pcs Array Infrared LEDsor + White Supplement Light. 60m Night Vision

Video

Video compression

standard

H.265/H.264 Main Profile/H.264 Baseline

Video streaming

Dual streaming

Video resolution

First stream: 2560x1920 or 2560x1440

Second stream: 800x600 or 800x448

JPEG stream :(Monitoring for mobile phones), Q720P(640x352), QQ720P(320x176)

Video code rate

32 to 8192Kbps. supports constant bitrate/variable bitrate

Video frame rate

15fps(PAL 50HZ/NTSC 60HZ)

Image settings

Brightness,saturation,contrast,Sharpness,Exposure,flip,mirror

Image enhancement

Backlight compensation,Automatic white balance,

Digital WDR, 3D digital noise reduction

Audio

Audio compression

standard

G.726/G.711

Audio code rate

Rate adaptive

Audio Input

Support, Built-in Microphone

Audio Output

Support Two Way Audio Talk ,  Built-in Loud Speaker

Function

Motion detecting

Can set 4 independent detection region (1-100 sensitivity can be set)

Alarm linkage

Alarm send pictures to the specified mailbox, alarm upload pictures and

videos to the FTP server, alarm write pictures and

videos to Micro SD card, alarm message push

Privacy mask

Maximum support 4 users to simultaneously browse

OSD

Support camera name, date and time information superimposed

User management

Supports user and rights management

Simultaneous viewers

maximum support 12 users to simultaneously browse (each stream supports 4 users)

Network protocol

TCP/IP,HTTP,TCP,ICMP,UDP,ARP,IGMP,SMTP,FTP,

DHCP,DNS,DDNS,NTP,UPNP,RTSP etc.

Connection protocol

Support ONVIF 2.1(backward compatible)

Wireless

Wireless standards

IEEE802.11b. 802.11g. 802.11n Draft

Frequency range

2.4 GHz  to  2.4835 GHz

Wireless Security

64/128-bit WEP. WPA/WPA2. WPA-PSK/WPA2-PSK. WPS

Transmission rate

11b: 11Mbps,11g :54Mbps,11n :135Mbps

PTZ

Rotation angle

Horizon:0° to 355°. Vertical: 0° to 90°

Horizontal speed

1° to 40°/S

Vertical speed

1° to 20°/S




Power interface

1*5.5mm power interface

Ethernet

1*RJ45 & Antenna 10M/100M Adaptive Ethernet Interface

TF card Slot

1*TF card slot. up to 128G(Don't included TF Card)

Reset button

Support

General

Specification

Power supply

DC 12V 2A

power

Day: 3W;  Night: 12W

Operating temperature

-20 to +60 degree

Operating humidity

10% to 95%

Material

Metal Housing ,Outdoor Use,Waterproof IP66

Installation

Rack mounting

Size(W×D×H)(mm)

175*115*110mm

Weight(kg)

1.02kg

Package Size(W×D×H)(mm)

250*250*100mm

Package Weight(kg)

1.4kg

Packing List:

1*5MP PTZ IP Camera Built-in Mic,Loud Speaker (Don't included TF Card)

1*Power Supply

1* Manual

1*Screws Bag

1*Antenna

1*Network Cable
