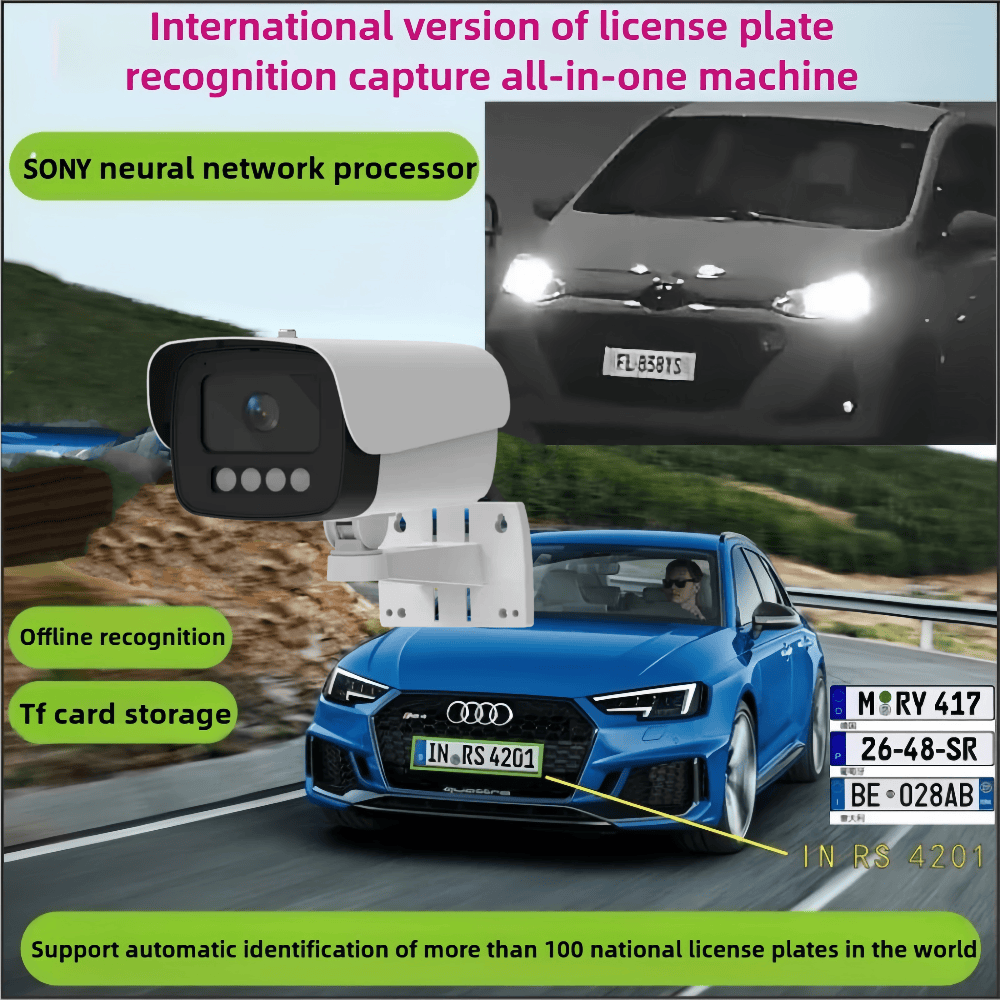

License plate recognition and capture machine
Product Description
This product's international version of license plate recognition all-in-one machine is an industrial-grade
4-megapixel license plate recognition and capture all-in-one machine for roads and entrances and exits.
It uses advanced neural network processors, AI deep learning algorithms, OCR technology,
and integrates license plate positioning, license plate character segmentation, and license plate character recognition algorithms;
it integrates video acquisition, vehicle detection, license plate recognition, image capture, picture storage, gate control,
LED display voice control, data transmission and other functions into one high-definition network camera.
It supports automatic license plate recognition in more than 100 countries around the world,
without customized development, and can achieve a "character + letter" license plate recognition rate of >90% with 0 samples,
and the recognition rate can reach more than 99% after learning. No software or back-end equipment is required,
and it supports single-machine offline recognition, capture, and storage.
Parameters:
| Model | SNO-LPR06-AF3.6-11 |
| Camera |
| Image Sensor: | 1/2.8" 4MP Progressive Scan CMOS |
| Signal System: | PAL/NTSC |
| Min. Illumination: | Color: 0.05lux @(F1.2, AGC ON), 0 lux with IR |
| Shutter Time: | 1/25 s to 1/100,00 s |
| Lens: | 3.6-11mm Manual Lens |
| Day&Night: | IR cut filter with auto switch |
| Image Enhancement: | BLC/3D NR/WDR |
| Motion Detection | Support |
| Privacy Protection | Support(4 Self-customized Areas) |
| Illumination for Infrared Switching: | 0.5~3Lux |
| Infrared Wavelength: | 850nm |
| Mimimum Illumination: | 0 Lux(IR ON) |
| IR Range: | 4pcs White Light LEDs 35m |
| Compression Standard |
| Video Compression: | H.265/H.264/MJPEG |
| Video Bit Rate: | 500Kbps~3000Kbps(CBR/VBR Selectable) |
| Audio Compression: | G711U/G711A |
| Dual Streams: | Yes |
| Triple Streams: | No |
| Image |
| Max. Image Resolution: | 2560*1440(4MP) |
| Frame Rate: | 50/60Hz: Max.: 2560*1440@25fps/30fps |
| Sub Stream: | 50Hz/60Hz: 1080P/720P/D1@25fps/30fps |
| Image Settings: | 3D NR, WDR, Image Flip, Saturation, Brightness, Contrast, Sharpness
adjustable via client software, web browser or Smartphone App |
| Day/Night Switch: | Auto/Timing/External/Manual |
| Network |
| Network Protocols: | HTTP, TCP/IP, IPv4, UPNP, RTSP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS etc. |
| General Function: | Anti-Flicker, heartbeat, password protection, privacy mask, Watermark |
| System Compatibility: | ONVIF(2.6+ Media2)/Private |
| On-line Viewing | Max. Support 6 Users Simultaneously |
| Interface |
| Communication Interface: | 1 RJ45 10M / 100M Ethernet Interface |
| RCA Audio Interface: | RCA Audio input/output |
| DC Power Plug: | DC Power Femate Interface |
| General |
| Operating Conditions: | -10 °C ~ 60 °C |
| Humidity 95% or less (non-condensing) |
| Power Supply: | 12 V DC ± 10%/PoE(Optional) |
| Power Consumption: | 12 VDC ± 10%, Max Power Comsumption Less than 8W
(When the infrared lamps turn on) |
Functional Description
