Operating system

Embedded Linux OS

Resolution

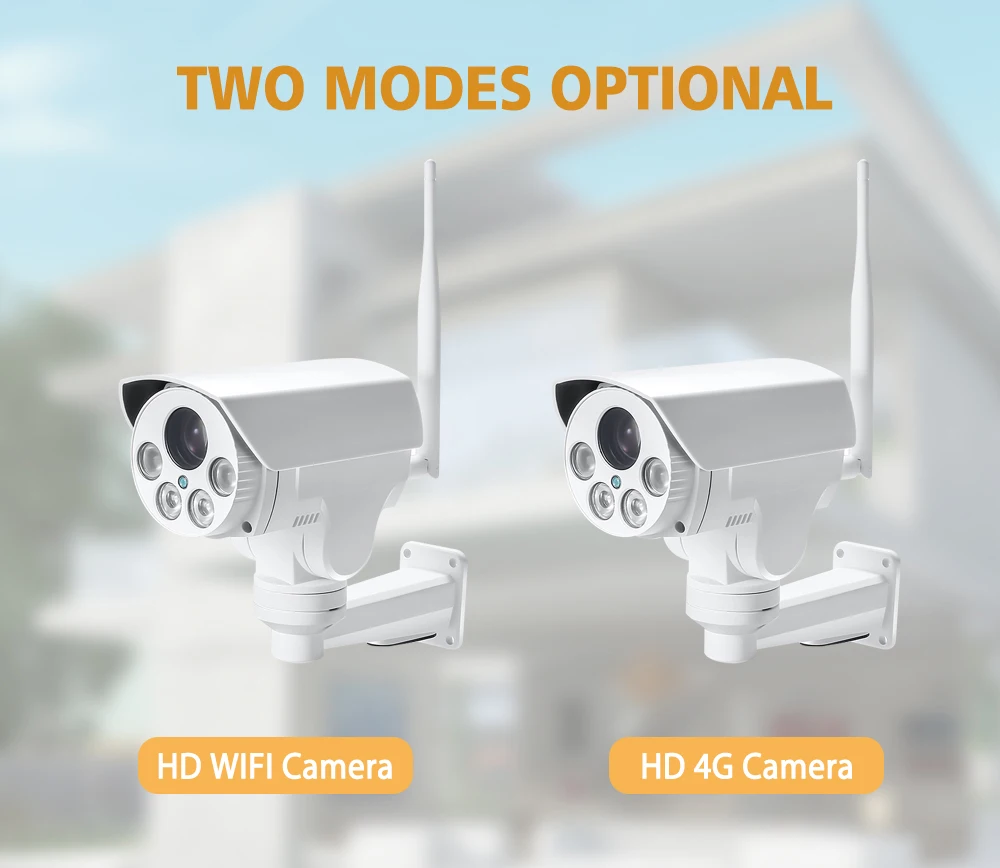

5MP WIFI Camera

8MP 4K WIFI Camera

8MP 4K 4G Camera

Lens

4.7-47mm

2.7-13.5mm

2.7-13.5mm

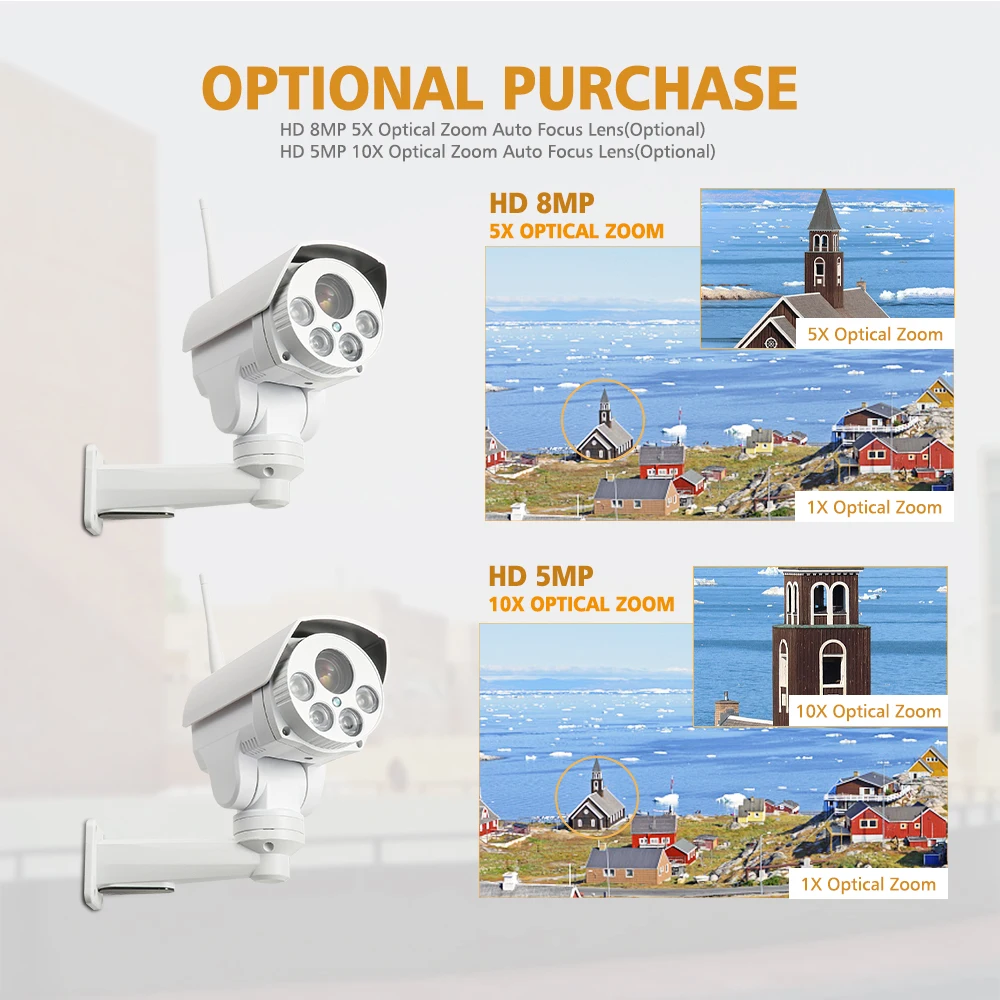

10X Optical Zoom

5X Optical Zoom

5X Optical Zoom

Min.illumination

0.05 Lux  / 0 Lux(IR on)

Day&Night mode

Auto IR-CUT

Night vision distance

4Pcs Array IR LEDS, 50M Night Vision

Video Compression

Standard

H.265/H.264 Main Profile/H.264 Baseline

Video streaming

Dual streaming

Video code rate

32 to 8192Kbps. supports constant bitrate/variable bitrate

Image settings

Brightness,saturation,contrast,Sharpness,Exposure,flip,mirror

Image enhancement

Backlight compensation,Automatic white balance,

Digital WDR, 3D digital noise reduction

Audio Input

Built-in Microphone

Audio Output

N/A

Motion detecting

Can set 4 independent detection region (1-100 sensitivity can be set)

Alarm linkage

Alarm send pictures to the specified mailbox,

 alarm upload pictures and videos to the FTP server,

alarm write pictures and videos to Micro SD card, alarm message push

Privacy mask

Maximum support 4 users to simultaneously browse

OSD

Support camera name, date and time information superimposed

User management

Supports user and rights management

Simultaneous viewers

Maximum support 4 users to simultaneously browse

Network protocol

TCP/IP,HTTP,TCP,ICMP,UDP,ARP,IGMP,SMTP,FTP,

DHCP,DNS,DDNS,NTP,UPNP,RTSP etc.

Connection protocol

ONVIF-compatible 2.0(backward compatible)

Wireless standards

IEEE802.11b. 802.11g. 802.11n Draft

Frequency range

2.4 GHz  to  2.4835 GHz

Wireless Security

64/128-bit WEP. WPA/WPA2. WPA-PSK/WPA2-PSK. WPS

Transmission rate

11b: 11Mbps,11g :54Mbps,11n :135Mbps

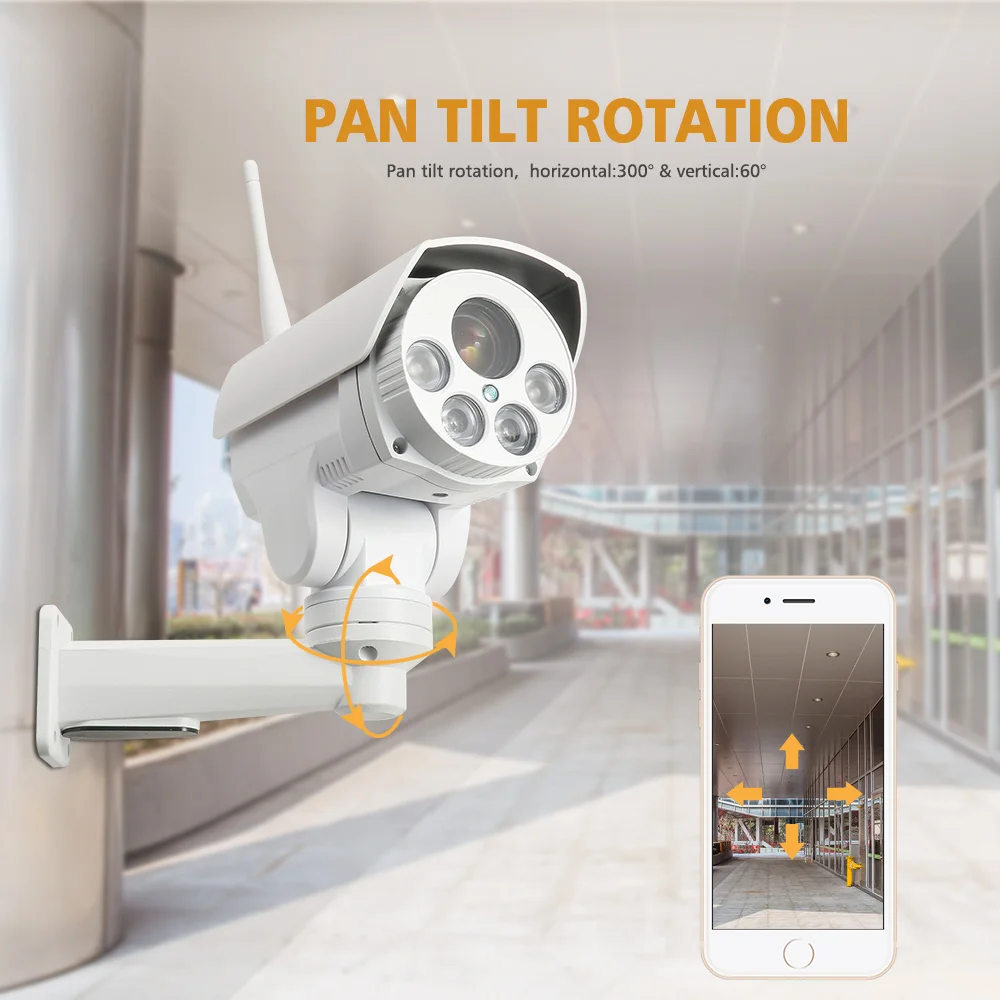

Rotation angle

Horizon:0° to 300°. Vertical: 0° to 60°

Horizontal speed

12°/S

Vertical speed

12°/S

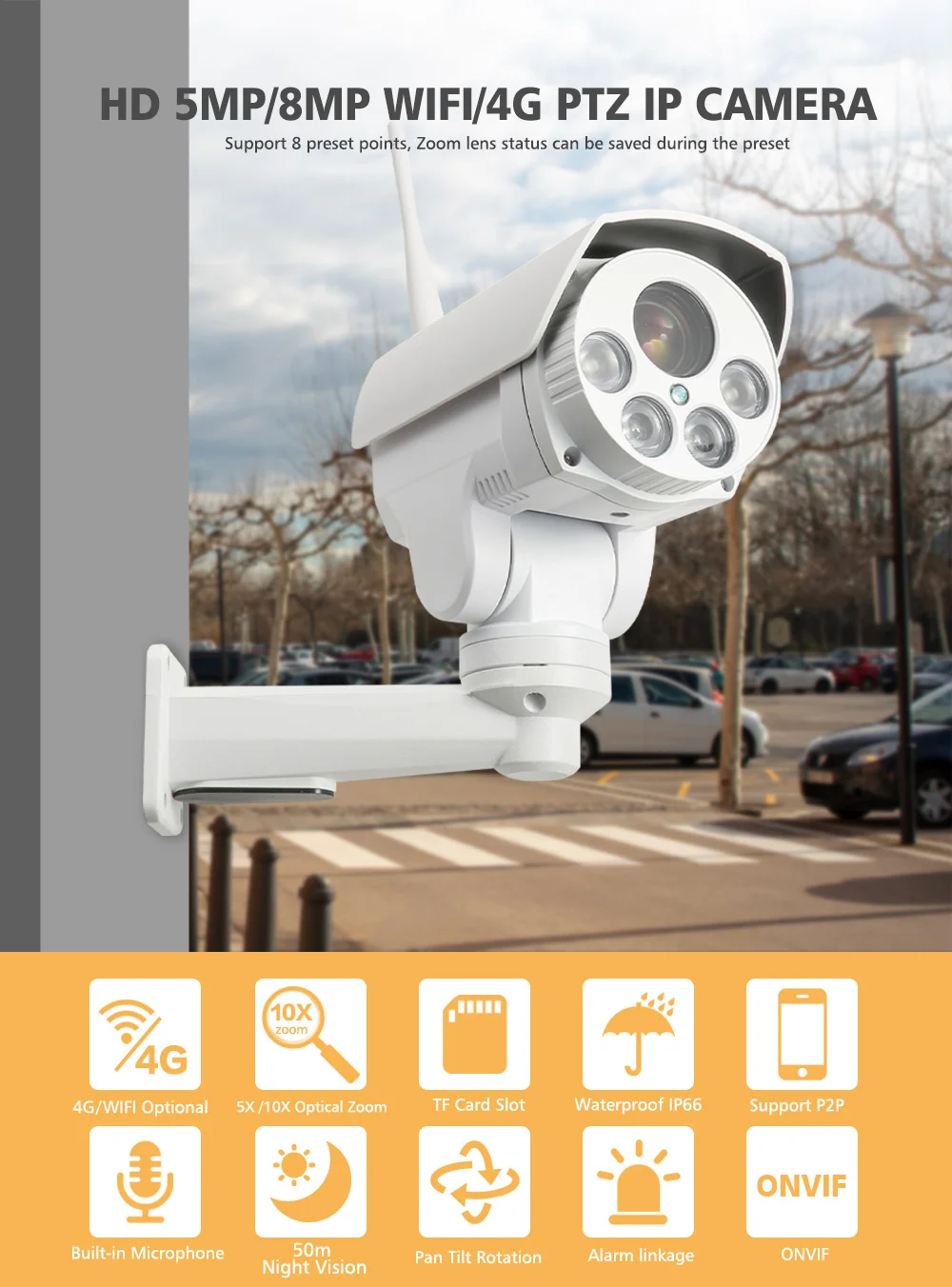

Preset

Support 8 preset points, Zoom lens status can be saved during the preset

Power interface

1 5.5mm power interface

Ethernet

1 RJ45 & Antenna 10M/100M Adaptive Ethernet Interface

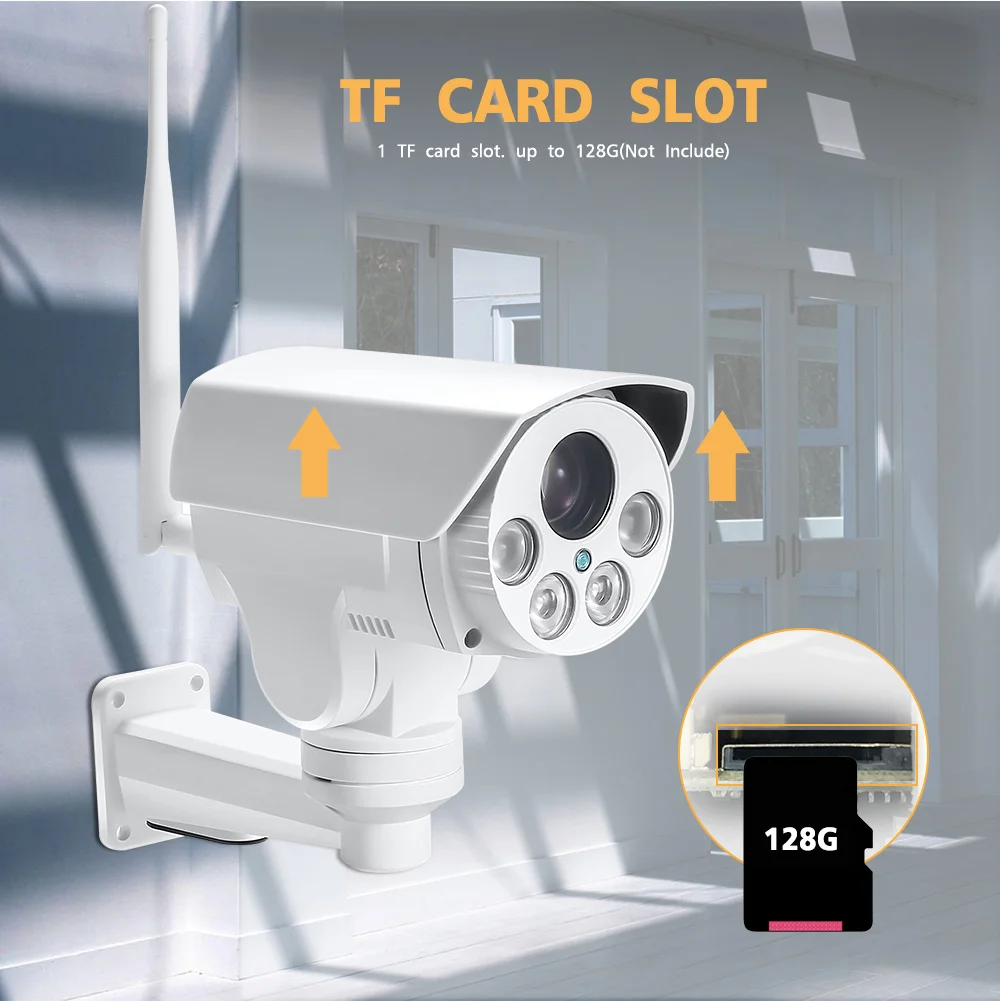

TF card Slot

1 TF card slot. up to 128G(Not Include)

Reset button

Support

Power supply

DC 12V 2A

power

Day: 3W;  Night: 8W

Operating temperature

-20 to +60 degree

Operating humidity

10% to 95%

Material

Metal Housing Material,Outdoor Use, IP66

Installation

Rack mounting

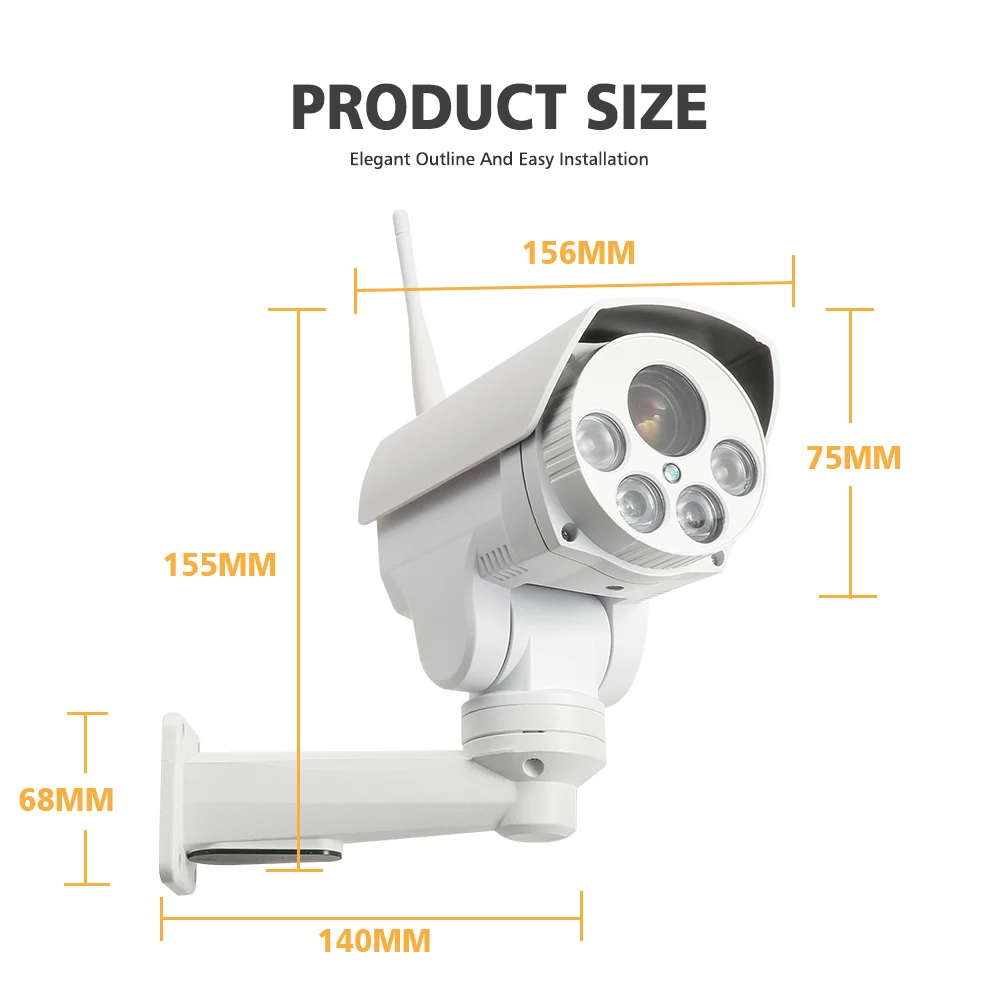

Size(W*D*H)(mm)

156*155*75mm

Weight(kg)

1.0kg

Accessories

1*1.5M Power supply. 1bag*Screws. 1*manual,1*antenna

Package Size(W*D*H)

204*184*133mm

Package Weight

1.2kg
