NVR |
Video Input | 8 Channel |
NVR Effective Pixels | 3MP, 2304(H)×1296(V) |

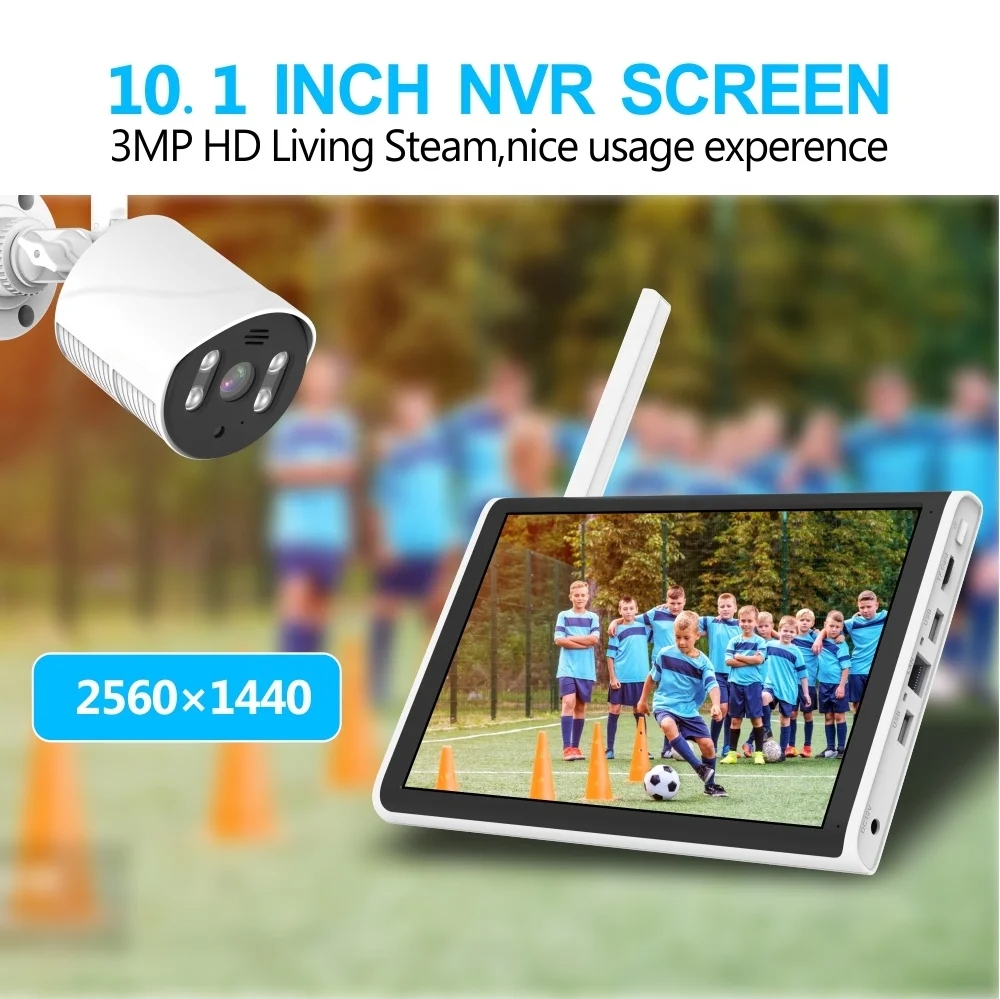

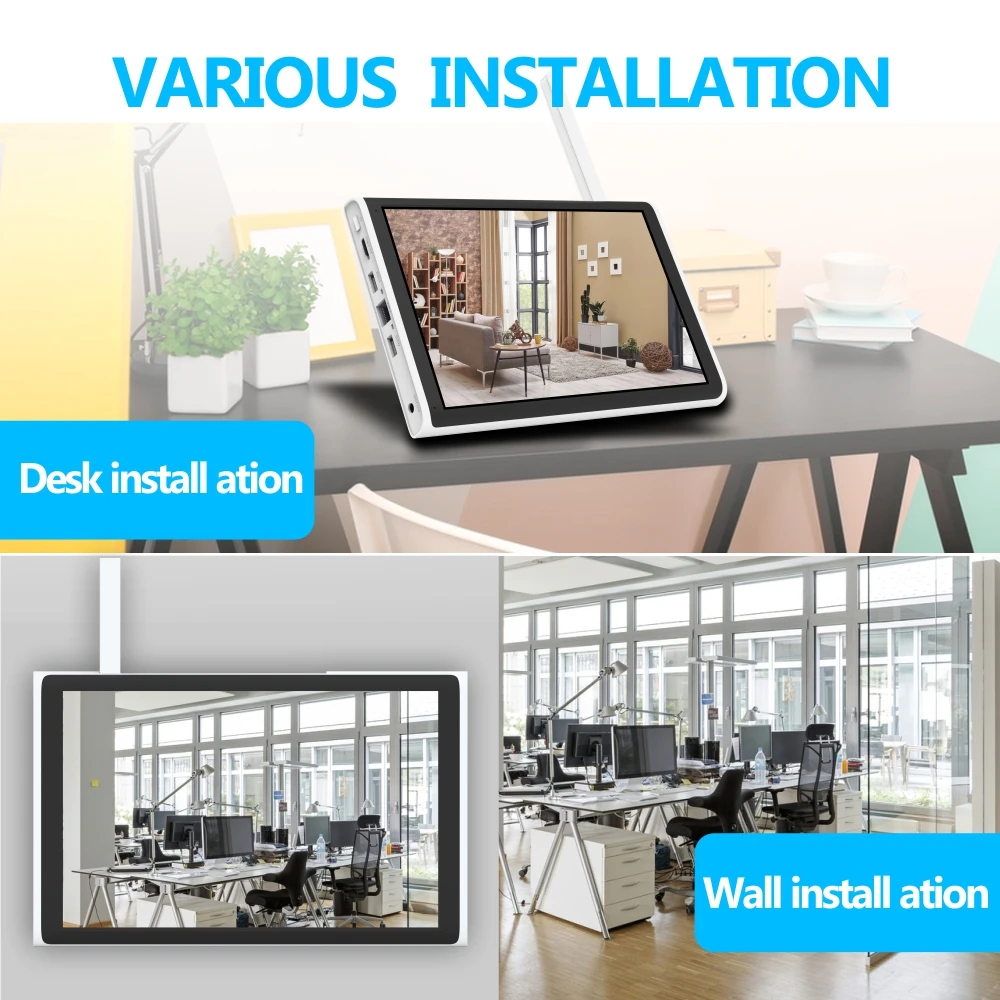

Screen | 10.1 inch LCD monitor, 1280×800 |
Video Compression | H.265+ |
Recording Mode | Manual, Alarm, Dynamic detection, Timing |
Backup | Network, USB |
Audio Compression | G.711A |
Audio | Built-in Speaker |
Face Detection | Support(depend on camera) |
Human Detection | Support(depend on camera) |
HDD | 1 SATA Port for 2.5” HDD, up to 4TB, and support micro SD card up to 256GB |
Network Interface | 1 Ethernet (10/100 Base-T) RJ-45 Connector |
Wi-Fi Interface | WiFi 802.11b/g/n |
USB | 2 ports, USB 2.0 |
Power Supply | DC12V/1A |
Power Consumption | <10W (without HDD) |
Dimension | 252*162*22.5mm |
Camera |
Image Sensor | 1/3” 3.0 MP Progressive Scan CMOS |
Camera Effective Pixels | 3MP, 2560(H)×1440(V) |

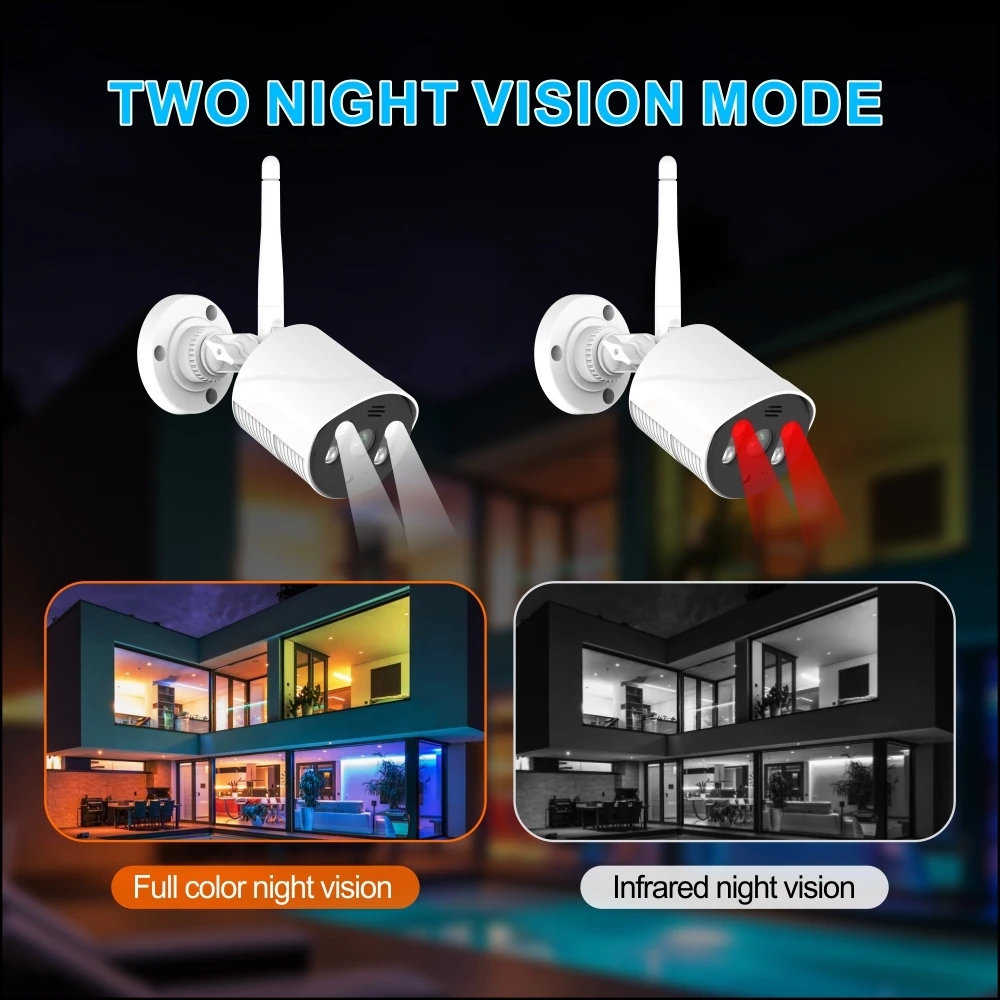

Min. illumination | Color: 0.1 Lux, B/W: 0.01 Lux |
IR Range | Up to 20 m (65.6 ft) |
Focal Length | 3.6 mm |
Motion Detection | Support |
Human Detection | Support |
WiFi | WiFi 802.11b/g/n, 2.4G |
Power Supply | DC12V/1A, Max 6W |

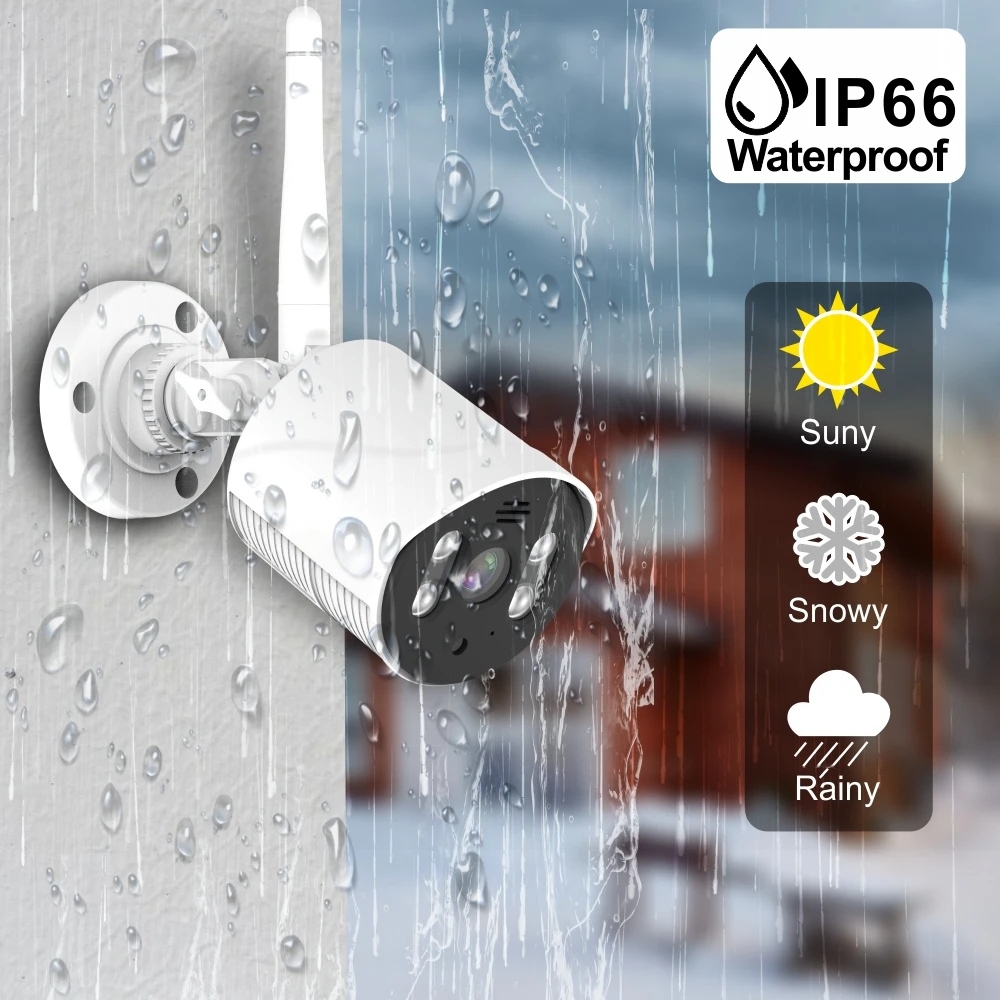

Waterproof grade | IP66 |
